Welcome to Hebei Wuqiang WeiTe Electrical Appliance Co., Ltd.
Contact us
Hebei Wuqiang WeiTe Electrical Appliance Co., Ltd
Contacts:Section manager
Mobile: 86-13333086669
Tel:0086-318-3736777   0086-318-3736111
Fax:0086-318-3736969
E-mail: 76663880@qq.com
Address:Dayang Village, Wuqiang County

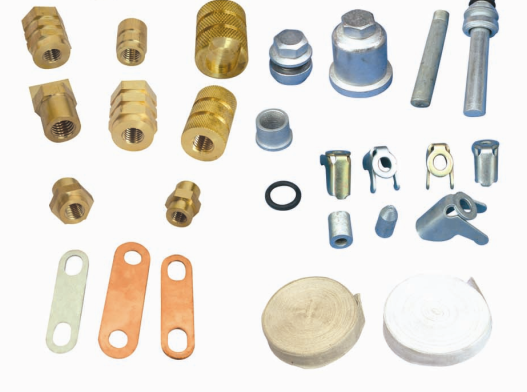

Gas relay, dry-type transformer accessories, oil tank accessories
Gas relay, dry-type transformer accessories, oil tank accessories
Contacts:Section manager
Tel:0086-318-3736777   0086-318-3736111
Mobile: 86-13333086669

  QJ2-40 is a changed product of QJ1-40 gas relay. The buoy gets into the oil tank of the transformer, and it gives alarm when the oil lever is lower than the regulated level of the transformer tank. If the oil level is lower than another regulated level, the transformer is cut from operating.

Main technical parameters

Pipe diameter: 40mm

Contact capacity: DC/AC 220V 0.3A

Dielectric strength between open contacts: 2000V 1min

Seal test pressure: 245kpa 20min


Operating characters (seen in the table)

Type

Alarm signal

Trip signal

Oil tank opening dimension

QJ1-40

170ml±10%

270ml±10%

50mm

QJ2-40

15mm±2.5mm under the cover

30mm±2.5mm under the cover

50mm

QJ3-40

15mm±2.5mm under the cover

30mm±2.5mm under the cover

50mm

Previous:Butterfly valve, valve and oil level tube
Next:
